This guides shows you how to convert a DVD to DivX / XviD in some simple steps. This is version 1.33 but you can get a newer version (1.34). I have decided to show you this program as this is very good and unlike FairUse Wizard you can burn VOB files already burnt onto the pc. If you want to do this, read Afonic's guide about ripping a DVD to the Hard Drive of your PC here.
This software leaves excellent results especially using the XviD codec. Sadly for some reason 2 pass mode on DivX will NOT work on my computer but on XviD it does. Anyway XviD is known to be the best codec so lets get on with the software outlook. Make sure you have the XviD or DivX codec installed on your PC beforehand to avoid confusion. Also get SimpleDivX here.

On top of the software you will see nine different tabs. Do not worry as I will cover all and provide you with the tweaks looking excellent. Here you will first start off by selecting the directory in which the burnt VOB files (or entire DVD is). If you burnt it with the .IFO, this will include all the information of the movie (subtitles, angles and so on) select this solo file only. If not, do not worry as you can click the select all file tab key. The bottom just details all the information regarding the DVD movie itself. Select the main movie, note the framerate number and click the next tab (Video).

Here are the video settings. Select the right framerate based on the one you saw in the step before. Click enable Video Stream and use 0xE0. Now click Auto Retrieve cropping and select width 640. Leave everything blank in Frame Options. You may want to preview the video, and then click the Audio tab.

We are now on the Audio section. Here click Create Audio. Then select Check Audio and Deselect Extract all Audio. Now on the language drop-down menu it will indentify what languages are available so that you can encode your final product with. Select the one you want (be careful not to select any director's comment track). Now on Audio Format, you can choose AC3 which will keep the best sound possible (6 channels) but will increase the size of the final file (thus meaning it might not fit on a CD-R.) I suggest to use MP3 and change bitrate to 128kbps. You can click on Midnight Mode (which will normalize the audio to 100% and increse sound in places needed throughout the encode). Then click the Codec tab.

Click the codec you will like to use. XviD is the best choice. Make sure you select to create a 2-pass video file. It will take more time, but the quality is going to be much better. In the Advance Settings you can make the video of a higher quality but from experience this file will come out larger than a 700mb disc. I normally leave everything blank but you can select Quarter Pixel (which increases the accuracy of micro-blocks within the film). The interlace option can also be used if wanted. On the fourth step screen again, you will see at the bottom Pass Options. I normally do Both passes but if for some reason you want to do a First Pass then after a day do the 2nd pass then this is also possible. Now click at the Compression tab.

On the top make sure you click Enter Final Movie Size. Then Get Time from Movie. In the File Size bar put in 700mb if you want it to fit on one disc, but if you know the movie is very long for example ''The Godfather'' then this will be better spread onto two discs, so choose 1400MB. Now this is where it gets a little complicated. If you place your movie and you have followed everything in this guide and the movie's Bitrate is 700kbps or less, then you can either click at the bottom End-Credicts and click Do Not Include end credits in movie (if available). Another tip is if you are watching a movie and you know there is not much action in it (i.e. Slow Mystery) then click in the Advanced Bitrate Properties (Not Much Action in movie). If your movie is over 740kbps in the Bitrate section then do not worry at all. Now click the Misc. tab.

This is very simple. If you want to Create Subtitles using VobSub then click this. It will list all the available languages. Click the one you want (If you are watching the finished movie with Windows Media Player and want to see subtitles, make sure you have the final movie in a folder with the two subtitles) and it will play them. Also make sure you always click AVI as the movie's container. After you do so, click the Project tab.

Here in the project name, call the movie whatever you want (preferably the title of it). Create a temporary folder on your harddrive for SimpleDivX to store unfinished, unsorted data. (tip: make sure you clean this out once in a while because it can get huge in size). Make an output folder for the finished movie. Do NOT click overwrite files and delete temp files when finished because from experience this will tamper with your workflow. Just delete manually and especially problematic if you are doing a lot of jobs. The split total file at feature is great because if you want to put the movie onto two seperate discs, then this will split it at 700mb to be able to fit onto a disc. Deselect if you want oneAVI movie (of whatever size) without a cut. The Batch settings section is very handy as you can place jobs, if you are doing more than one movie, and it will do them all together. Just remember that everytime you click on a job and change something then click Modify so SimpleDivx can understand what you have changed. That's all here, now click the Output tab.

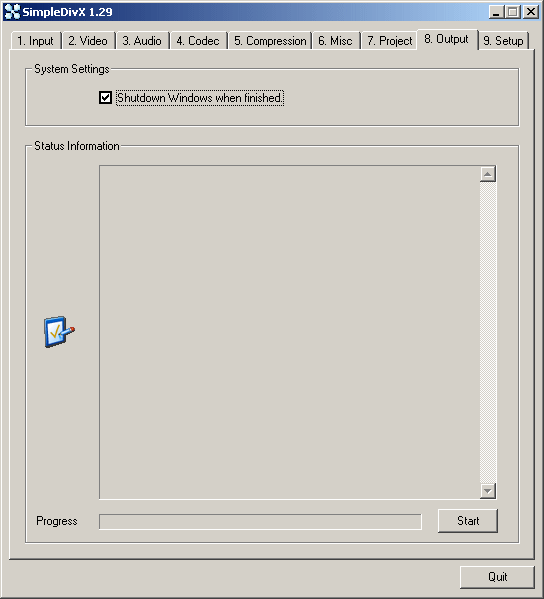

This will basically explain what is going on with the encoding process. If you want to Shut Down the Computer when the encoding process finishes select it. And then START to start the encoding process. And it will begin. The Last tab stated as Setup should be left UNTOUCHED. Now get ready to receive an excellent rip. It is an easy and free software that after you get the hang of it will leave you amazed with its results. Note that processing times depend on your computer and it's speed. On mine it takes around 5 Hours to encode but if your pc is slower expect 8 hours. What you are doing on the pc at the time of the encoding will also be a factor. This software is extremely powerful and has left me tobe amazed, hope that it will leave you too!

Comments (24)

Good
written by DJHotLatino, May 19, 2005

Good

•
• +2
•
•

SimpleDivx Roxx
written by lupuz, June 28, 2005

Thanks for this guide... this app really amazed me... took about 3 hours on my machine... very fast and got good quality too

•
• -1
•
•

great !
written by KiNdZiUs, June 29, 2005

thanks, it's very simple and very effective !

•
• -1
•
•

nice but..
written by Unknown1, July 26, 2006

this is a top piece of sotfware, i clicked the preview and it looks really good but i have just started the convertion but how do i know how long is left or how long it will take? i understand it may take a few hours thats fine, just like to know if it tells me round about how long because nothing as happened in both the little black box and the software window as of yet in about 10 mins.

thanx

•
• +2
•
•

mr
written by nihad, March 03, 2007

dvd tvcd

•
• -1
•
•

Thats cool but...
written by iam11b, March 20, 2007

What if I don't want to burn the entire dvd and I only want to burn one episode of a seaason DVD. I scrolled through each file on the list on tab 1 and then went to video to preview it. It did not go in any logical order. What am I missing?

•
• +3
•
•

LOL vevermind I got it
written by iam11b, March 20, 2007

Disregard previous post, I am stupid. =)

•
• +0
•
•

That is wierd
written by PV, May 07, 2007

I followed the guide and after all was done all I got was the 2 minute trailer off the dvd but in the first tab it said it was the full movie. What did I do wrong? Thanks in advance

•
• +6
•
•

Did not work
written by David104, May 09, 2007

I tried by following all instructions, but only get a small clip. I selected main movie and total time of movie says 1h 51m 35s. What am I doing wrong?

•
• +5
•
•

...
written by Anton Wood, May 17, 2007

In the new version i cant change codec settings, they are only one alternative and thats is costum codec plz help me ?

•
• +2
•
•

speed
written by JesusLover, August 09, 2007

its working but on my computer but it only takes...............................1 minute to do

•
• +1
•
•

same as these guys
written by phorum.ws, August 27, 2007

i am having the same problem as these guys, i have a 1h 41min movie, and expecting atleast 8 hours, and 5 mins later a 800-900kb avi file showing the start of the movie (like 30 seconds
and the new version looks nothing like your tutorial, so i think we are all having the same prob with the new version, as it is askin us for stuff u have not covered.. can u upgrade, or anyone got a link to this version?
i have tried everyway possible.

•
• +3
•
•

this sux
written by phorum.ws dloadz, August 27, 2007

yep, this dont work no more..... time for a new tut and software...

•
• +1
•
•

worked!
written by Oceanfm, September 15, 2007

worked first time, thx

•
• +2
•
•

Perfect
written by Ajazzle, December 12, 2007

worked the first time...and I am using a newer version than this...so keep trying it works...i just got Superbad on my Archos 605 and it looks and sounds fantastic

thanks a million!

•
• +0
•
•

Great guide! :-)
written by erinmai, December 27, 2007

Thank you very much for this guide.

•
• +0
•
•

This works perfect :D
written by danlee, December 29, 2007

Gotta love this, works fine for me easyer to use than MeGUI stuff

•
• +0
•
•

jgjhjhjh
written by gjhjk, January 08, 2008

ffhggjhghjgjhjj

•
• +0
•
•

jgfuidgfhksdjgi
written by blerim, January 14, 2008

egds9gvodigjvosd

•
• +2
•
•

Problem
written by Andreas L., February 24, 2008

I've selected a "Lost"-disc and tried to open the VTS-files, but when I do it comes with an error where I have to send a report:

http://frip.dk/zamm/Fail.JPG

The picture shows danish letters, but it is a fail report as you all probably have got.

Anyone who knows my problem

And you all might notice that my english language is not so good, that's because I'm a danish.

•
• +1
•
•

Great
written by Ligia, June 23, 2009

Thank you very much, very useful!

•
• +0
•
•

Great!
written by Mohamed, September 09, 2009

Took 1 hour on my machine and got great quality... Great application and great guide! Thank you very much!

•
• +0
•
•

Worked Great!!
written by Roams, February 28, 2010

Used latest version of software, screens are a little different but it still worked fine!

•
• +0
•
•

did not work-yu selectted wrong input file
written by ripper of thangs, May 29, 2010

did not work-you selected the wrong input file
i dpont use this i use auto gordian knot -same job but agk is more for vid pros
make sure yu select the correct input file-with dvds its often like
vts_01_0 +they go up numerically-NORMALLY you start at number 1+ignore 0(often denoted by the icon in windows folders as media/wmp/mpc files.
should als0o point out that dvd shrink will reduce the time & size of the file/s with no loss of quality-thats how people get 700 meg movie files for torrent-with auto gordian knot+dvd shrink-of course many new dvd players can burn in divx -just that most of you never get as far as reading the manuals !! lol

•
